DC Inverter Multi Split Unit

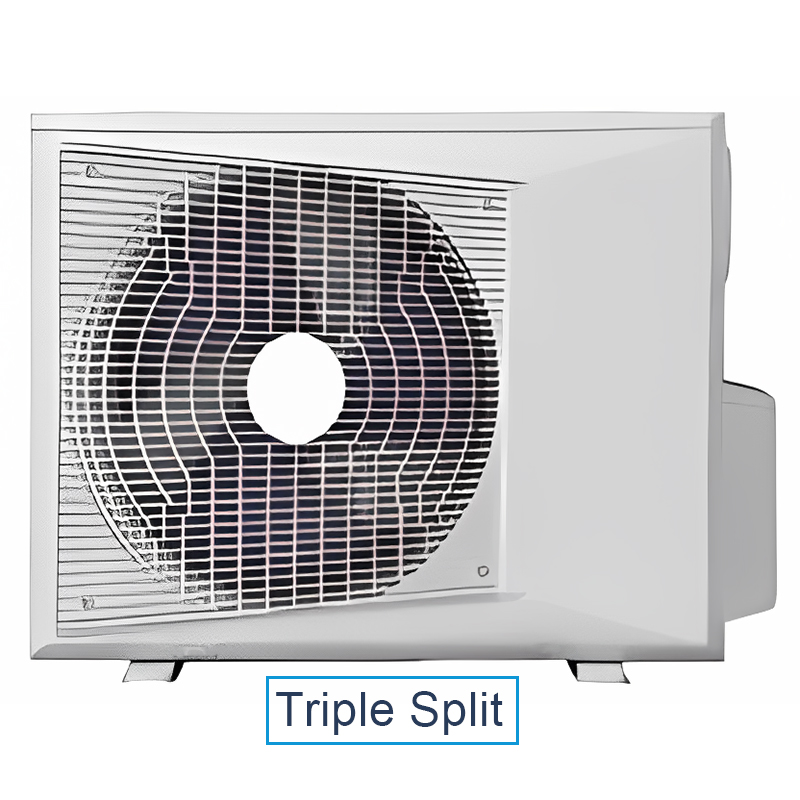

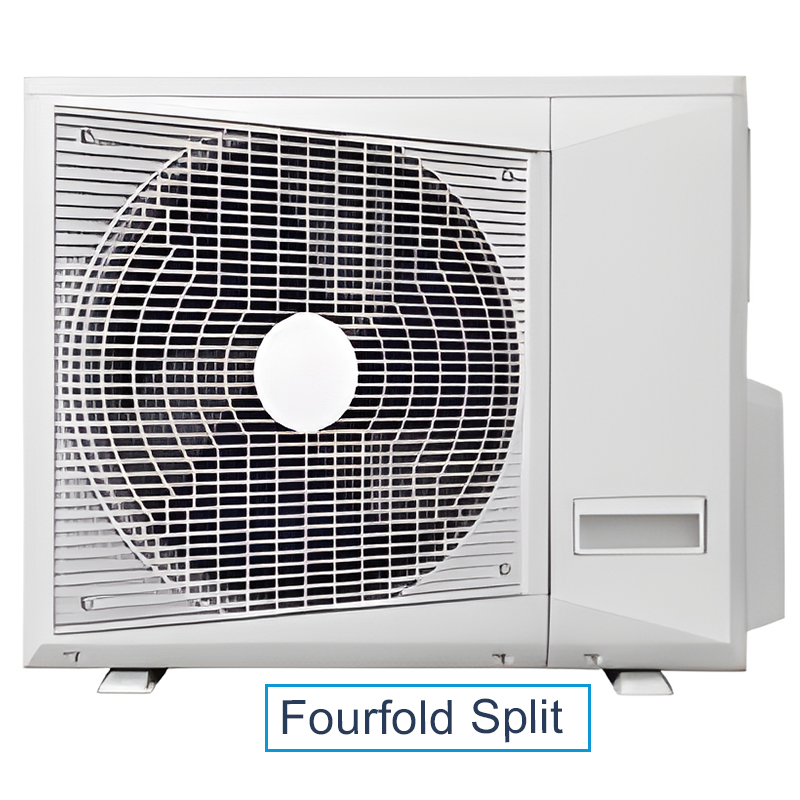

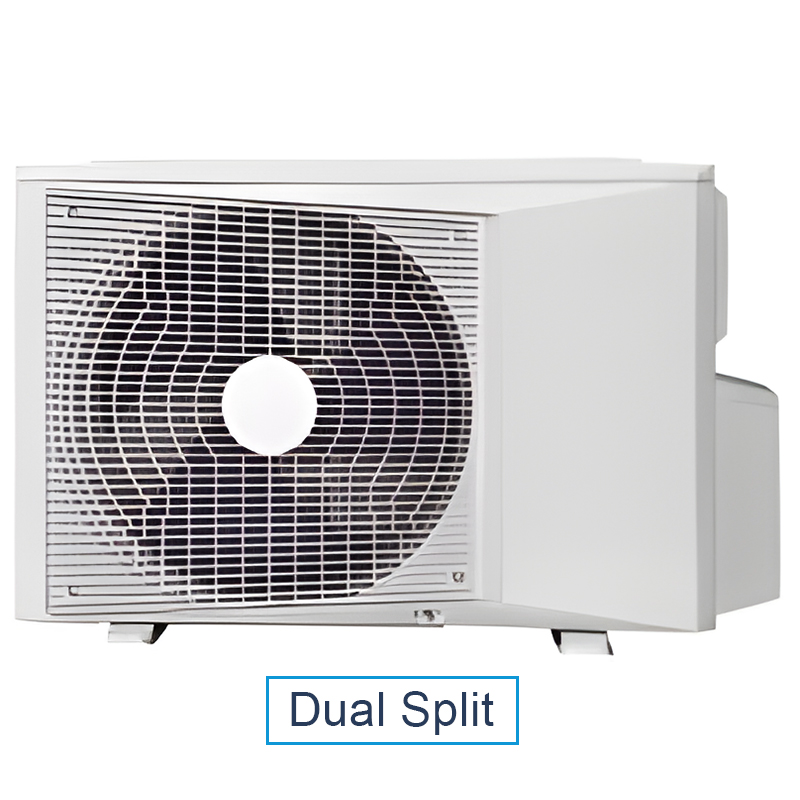

The DC Inverter Multi Split Unit offers a customizable and efficient cooling solution for your home or apartment. This versatile system allows you to connect multiple indoor units to a single outdoor unit, ranging from dual split to fivefold split configurations, making it ideal for cooling multiple rooms or spaces.

Here are key features of the DC Inverter Multi Split Unit:
Space-saving Design: By connecting multiple indoor units to a single outdoor unit, This system minimizes installation space requirements, making it perfect for smaller apartments or homes.
Customizable Comfort: Choose from a variety of indoor unit types, including compact cassette, wall-mounted, and low-GSP duct units, to best suit the needs and aesthetics of each room.
Wide Operating Range: This unit provides reliable heating and cooling performance in temperatures ranging from -15℃ to 52℃, ensuring comfort even in extreme weather conditions.
Efficient Operation: DC inverter technology delivers precise temperature control and energy savings compared to traditional air conditioning systems.
Flexible Installation: With a maximum pipe length of up to 75m and a maximum height difference of 10m, you have flexibility in choosing the installation location of the outdoor unit for optimal performance and aesthetics.
The DC Inverter Multi Split Unit combines versatility, efficiency, and quiet operation for a complete home comfort solution.

Category Tag

Description

Newex DC Inverter Multi Split Unit

Matching mode

Multiple indoor units can be connected to 1 outdoor unit, which is friendly to small apartment and save installation space.

Various indoor units

Connecting different types of indoor units to meet different needs.

Wide operation range

The temperature range of cooling and heating is wide, suitable for a variety of scenarios.

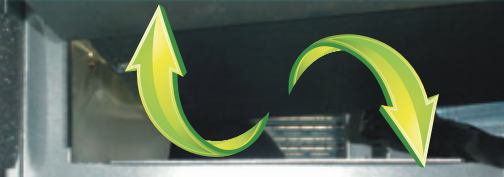

New design E-box

New design allows fresh air flow by to cool down the inverter module, ensuring stable operation.

Fresh air inlet to cool down the inverter module, keeping the temperature of theinverter module<90℃

Fresh air inlet to cool down the inverter module, keeping the temperature of theinverter module<90℃

Flexible installation

The total max. pipe length is up to 75m and max. height difference is up to 10m, which allows to choose a suitable place to install the outdoor unit.

The total max. pipe length is up to 75m and max. height difference is up to 10m, which allows to choose a suitable place to install the outdoor unit.
Specification

*Click to see the parameter table ↓

R32 Multi Split Outdoor Unit

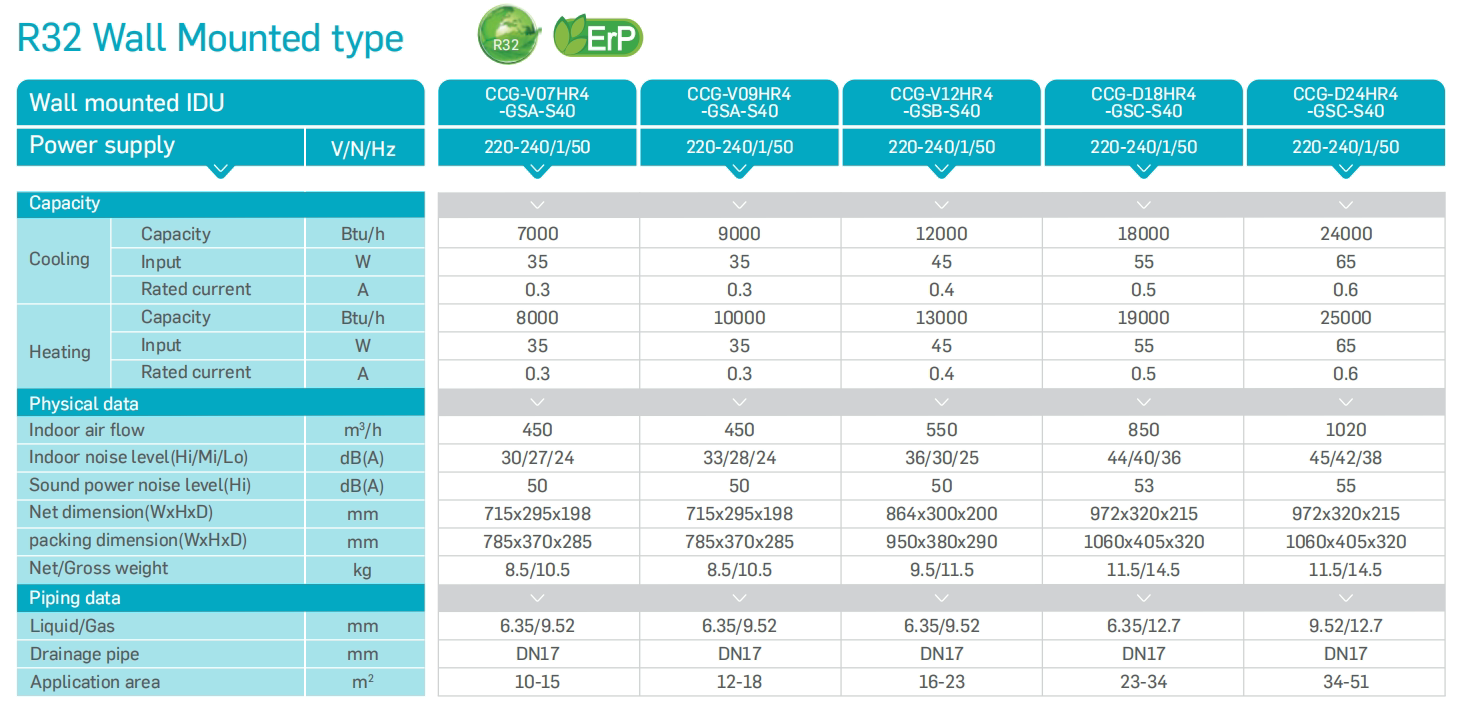

R32 Wall Mounted type

R32 Cassette Type

R32 Console

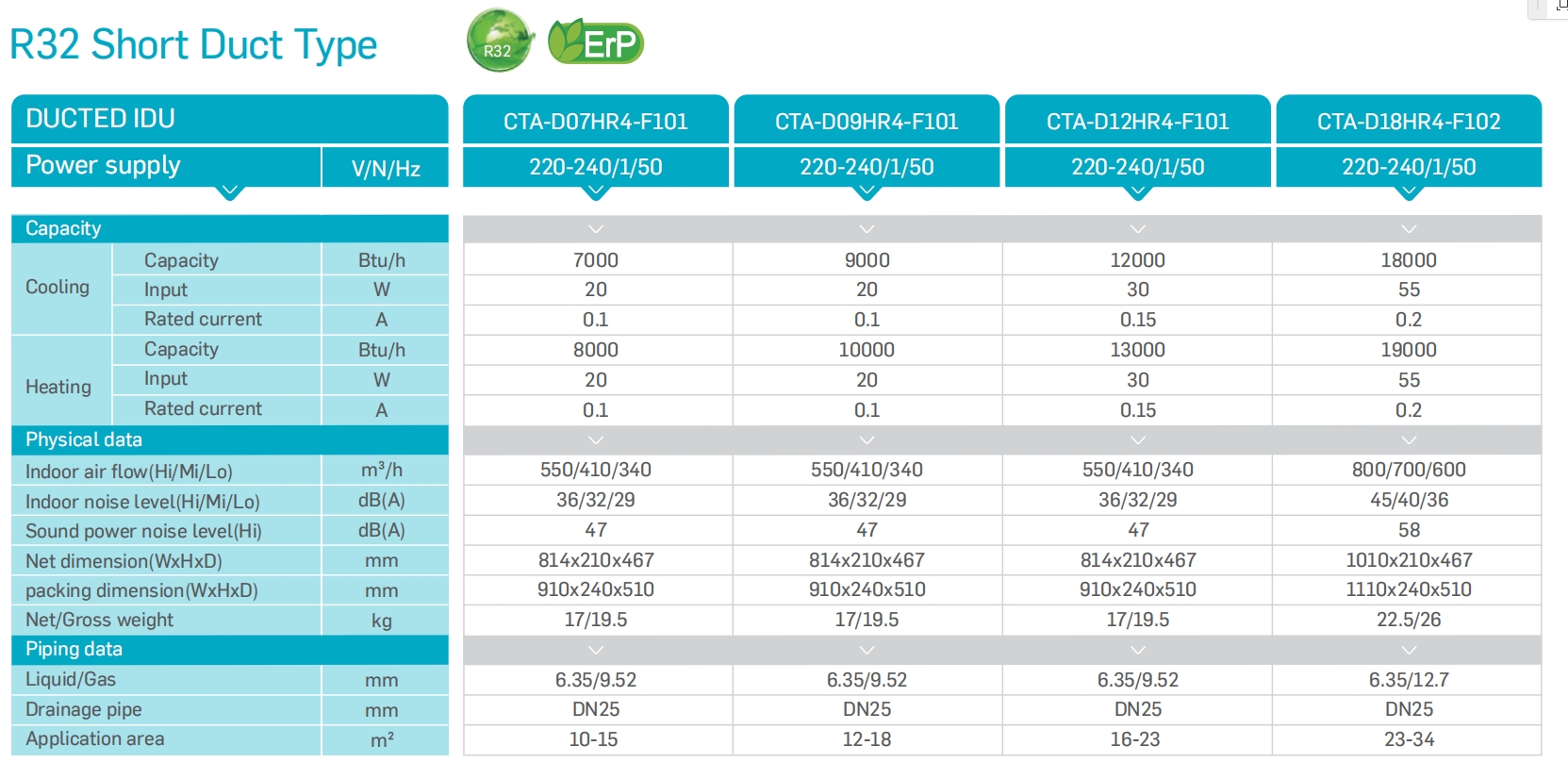

R32 Short Duct Type
