Description

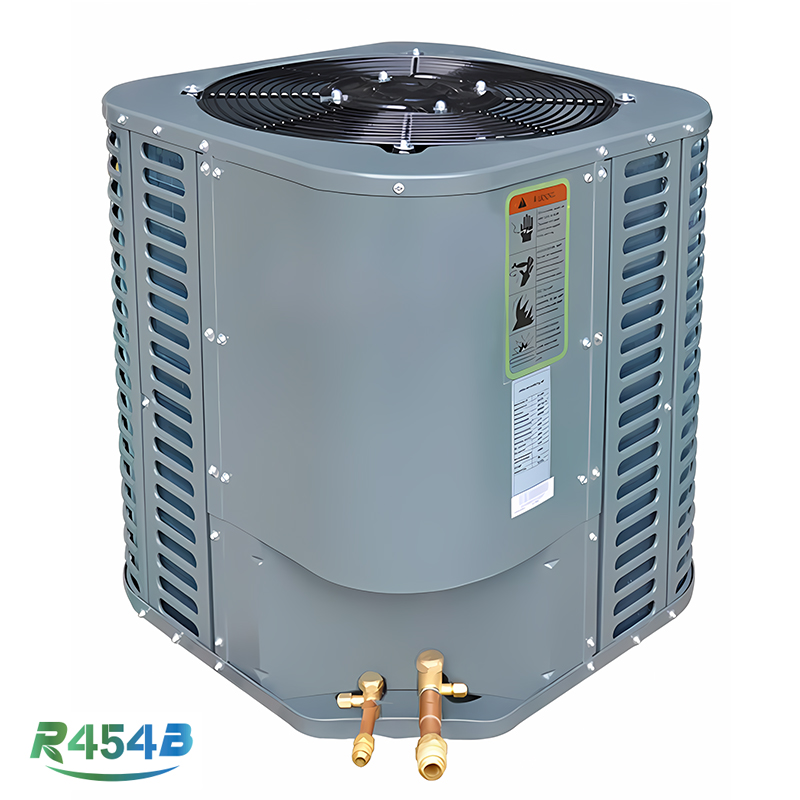

High efficiency scroll compressor
Quick response, stable operation, low noise, small size and light weight.
Built-in drying filters ( Optional )
The optional built in filter is to filter impurities in the pipeline to extend the service life of the machine.
Service valves
A service valve is reserved to facilitate pressure measurement during maintenance.
DC fan motor
DC fan motor is adopted, which is single speed, very cost-effective .

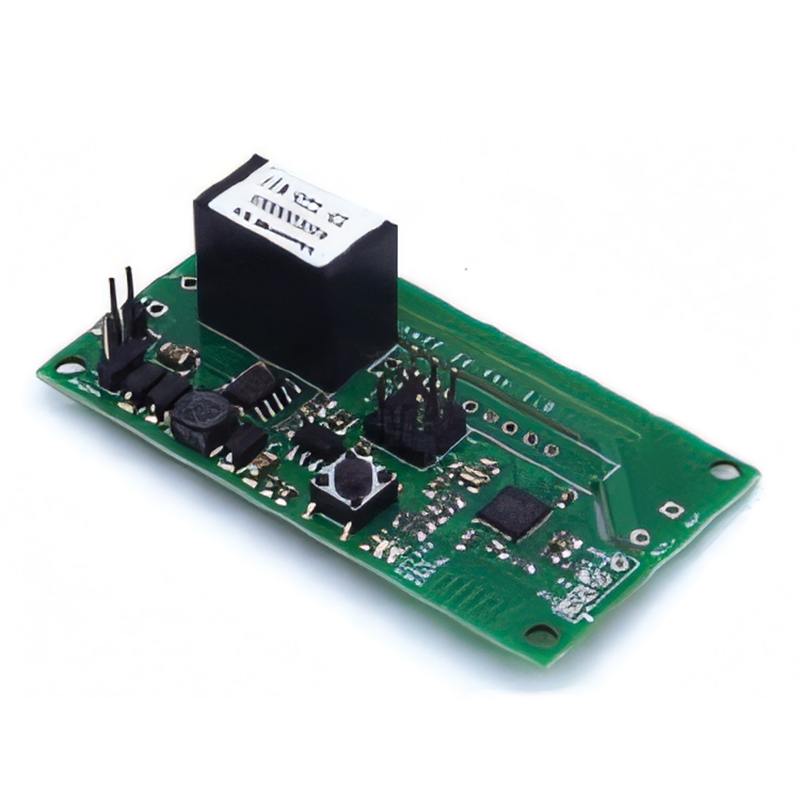

24V low voltage control
Safe, reliable, and can be used with third-party IDUs.
High efficiency condenser
Composed of inner groove copper tube and hydrophilic aluminum foil, which has better heat exchange efficiency.
（ Click to enlarge ）
Certificates and Patents
ISO9001 quality management system, ISO14001environmental management system, OHSAS18001 occupational health and safety management system, QC080000 electronic and electrical components and products harmful substances process management system certification.
Main product certificated by CCC, energy-saving certification, ETL, AHRI, DOE, CE, CB, SASO, ESMA,MEW and others according to specific market requirements.
Intelligent defrosting program
Multi protections to avoid unit broken

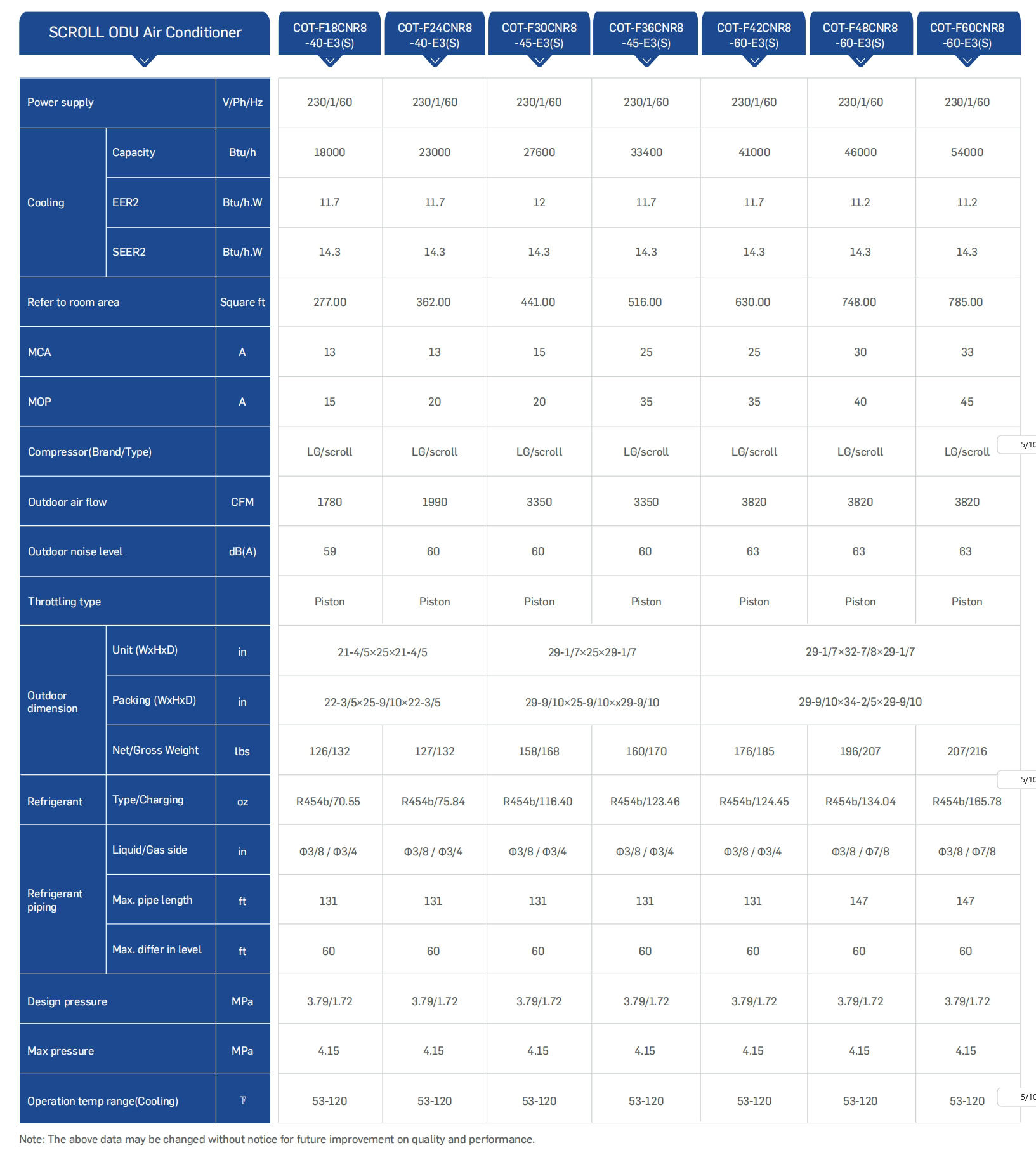

Condensing Unit Specification
