Description
Features
Heating Mode
Heating mode is available to provide heating air in the room.

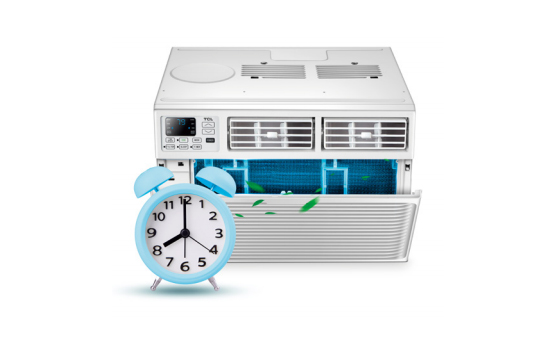

Filter check
After running for a particular period, the air-con will automatically detect the cleanliness of the filter and remind users of filter cleaning.
Celsius And Fahrenheit Degree Switch
Temperature display can be switch between Fahrenheit and centigrade Degree.
Smart Sleep Mode
This function ensures you have a comfortable night’s sleep without su¦ering from under-cooliing or over-heating.
Parameter
（Click to view full image）
（Click to view full image）
Marketing model | TTW-08CRD1/U2 | TTW-10CRD1/U2 | TTW-10CRD2/U2 | TTW-12CRD1/U2 | TTW-12CRD2/U2 | TTW-14CRD2/U2 | ||
Power supply | Ph-V-Hz | 1Ph, 115V~, 60Hz | 1Ph, 115V~, 60Hz | 1Ph, 230/208V~, | 1Ph, 115V~, 60Hz | 1Ph, 230/208V~, | 1Ph, 230/208V~, | |
Cooling | RATED Capacity | Btu/h | 8000 | 10000 | 10000/9800 | 12000 | 12000/11600 | 14000/13600 |
Cooling | RATED CEER | Btu/w.h,w/w | DOE | DOE | DOE | DOE | DOE | DOE |
Cooling | RATED Input | W | 790 | 980 | 980/960 | 1160 | 1160/1130 | 1460/1400 |
Cooling | RATED Current | A | 8.5 | 11 | 5.5/6.0 | 11.5 | 6.5/7.0 | 7.5/8.5 |
Moisture Removal | L/h | 0.8 | 1.2 | 1.2 | 1.6 | 1.6 | 2.1 | |
Refrigerant type (R32) | ozs | 9.17 | 11.64 | 12.52 | 12.69 | 12.34 | 15.52 | |
Compressor | Brand |
| GMCC | GMCC | GMCC | GMCC | GMCC | GMCC |
Compressor | Type |
| ROTARY | ROTARY | ROTARY | ROTARY | ROTARY | ROTARY |
Fan motor | Model |
| WELLING | WELLING | WELLING | WELLING | WELLING | WELLING |
Indoor air flow (Hi/Med/Lo) | CFM | 252/235/217 | 265/247/229 | 282/252/223 | 282/252/223 | 276/246/217 | 265/247/229 | |
Indoor noise level (Hi/Med/Lo) | dB(A) | 58/55/53 | 58/56/54 | 60/57/55 | 60/58/56 | 60/58/56 | 61/59/57 | |
Outdoor noise level (Hi/Med/Lo) dB(A) | dB(A) | 66/64/62 | 66/64/62 | 67/65/63 | 68/66/64 | 68/66/64 | 69/67/65 | |
Plug type |
| LCDI | LCDI | LCDI | LCDI | LCDI | LCDI | |
Plug Face (NEMA#) |
| 5-15P | 5-15P | 6-15P | 5-15P | 6-15P | 6-15P | |
Control type |
| Remote Control | Remote Control | Remote Control | Remote Control | Remote Control | Remote Control | |
Application area (Cooling EPA) | sp.ft | 300-350 | 350-450 | 350-450 | 450-550 | 450-550 | 550-700 | |
Dimension(W*D*H) | in | 24.21×20.28×14.53 | 24.21×20.28×14.53 | 24.21×20.28×14.53 | 24.21×20.28×14.53 | 24.21×20.28×14.53 | 24.21×20.28×14.53 | |
Packing (W*D*H) 1A | in | 28.35×26.97×16.38 | 28.35×26.97×16.38 | 28.35×26.97×16.38 | 28.35×26.97×16.38 | 28.35×26.97×16.38 | 28.35×26.97×16.38 | |
Packing (W*D*H) 6A | in | 28.35×26.97×17.72 | 28.35×26.97×17.72 | 28.35×26.97×17.72 | 28.35×26.97×17.72 | 28.35×26.97×17.72 | 28.35×26.97×17.72 | |
Loading quantity 40’HQ 1A | Pieces | 306 | 306 | 306 | 306 | 306 | 306 | |
Loading quantity 40’HQ 6A | Pieces | 255 | 255 | 255 | 255 | 255 | 255 | |
